M29504/14 & 15
Termini PDF

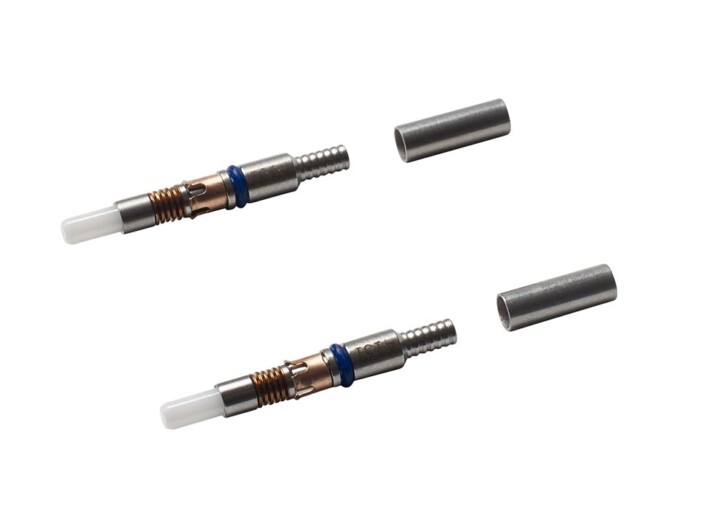

M29504/14 & /15 termini are qualified to MIL-PRF-29504B specifications. This series of fiber optic termini provide superior optical and mechanical performance and are compatible with M28876 and comparable military-style connectors such as TAC4.

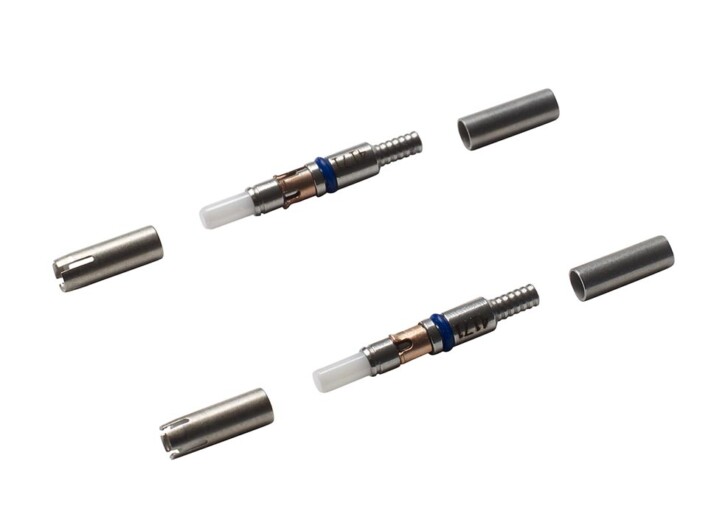

The M29504/15 features a ceramic alignment sleeve, maximizing its ability to hold extremely tight dimensional tolerances while maintaining accurate concentricity, providing superior mechanical and optical performance.
M29504 / 14-XXXX Pin Termini | M29504 / 15-XXXX Socket Termini |
Multimode | Singlemode | Multimode Short | Singlemode Short | Multimode | Singlemode | Multimode Short | Singlemode Short | Microns |
4131* | 4141 | 4151 | 4161 | 4171* | 4181 | 4191 | 4201 | 126.0 |
*Most common style.
Add 'C' at the end of the part number for included crimp sleeve.
